Tool # TM-180-12
Thread Milling Cutters - Single Form - UN Threads, Thread Milling Cutters
- Cutter Diameter: 0.1800"
- Neck Diameter: 0.0900"
- Neck Length: 0.750" (3/4)
- Length of Cut: 0.055"
- Threads per Inch: 18-56
- Tool #: TM-180-12
- Quantity Available: 17
- Price: $79.40
- Customer Rating:
Resources
Running Parameters
SIM Files / Tool Libraries

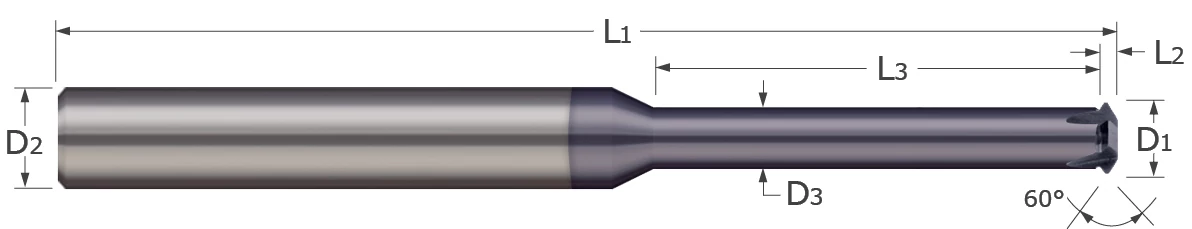

TOOL DIMENSIONS
- Cutter Diameter 0.1800"
- Neck Diameter 0.0900"
- Neck Length 0.750" (3/4)
- Length of Cut 0.055"
- Threads per Inch 18-56
- Flutes 4
- Shank Diameter 0.2500" (1/4)
- Overall Length 2.50" (2-1/2)
- Coating UN
- Profile Threadmill
- Catalog Page 226
