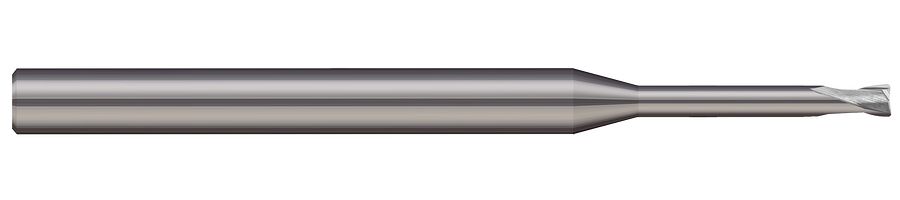

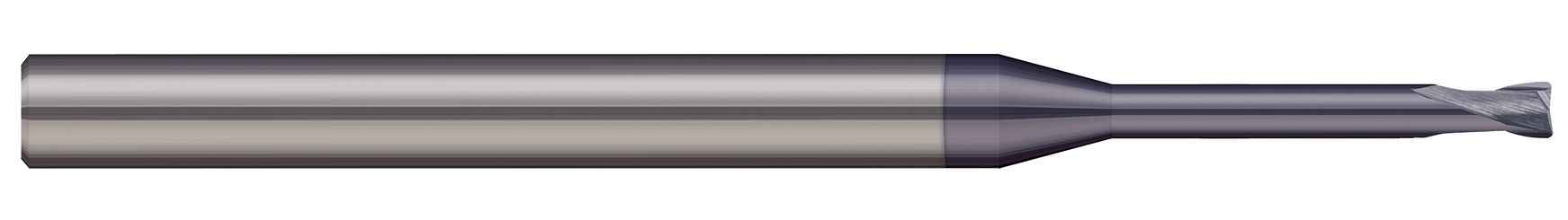

Tool # MMRM-015-25
End Mills - Corner Radius - 2 Flute - Reduced Neck, End Mills - Corner Radius
- Cutter Diameter: 1.500 mm
- Length of Cut: 1.50 mm
- Corner Radius: 0.15 mm
- Overall Reach: 25.00 mm
- Neck Diameter: 1.450 mm
- Tool #: MMRM-015-25
- Quantity Available: 16
- Price: $37.30
- Customer Rating:
Resources
Running Parameters
SIM Files / Tool Libraries

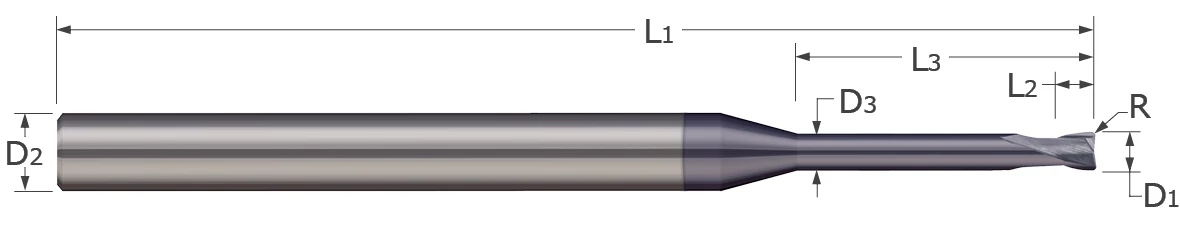

TOOL DIMENSIONS
- Cutter Diameter 1.500 mm
- Length of Cut 1.50 mm
- Corner Radius 0.15 mm
- Overall Reach 25.00 mm
- Neck Diameter 1.450 mm
- Shank Diameter 6.000 mm
- Overall Length 72.0 mm
- Coating UN
- Profile Corner Radius
- Catalog Page 252
