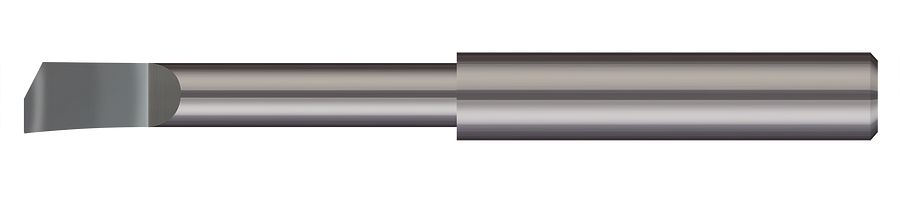

Tool # HBB-2401750
Standard - Boring Tools - Helical Back Rake, Standard - Boring Tools
- Head Width: 0.2275"
- Rotational Min. Bore Dia.: 0.240"
- Maximum Bore Depth: 1.750" (1-3/4)
- Neck Diameter: 0.2150"
- Centerline Offset: 0.1200"
- Tool #: HBB-2401750
- Quantity Available: 34
- Price: $31.80
- Customer Rating:
Resources
Running Parameters
SIM Files / Tool Libraries
TOOL DIMENSIONS
- Head Width 0.2275"
- Rotational Min. Bore Dia. 0.240"
- Maximum Bore Depth 1.750" (1-3/4)
- Neck Diameter 0.2150"
- Centerline Offset 0.1200"
- Shank Diameter 0.2500" (1/4)
- Overall Length 2.50" (2-1/2)
- Coating UN
- Profile Chamfer
- Catalog Page 138
