Tool # QFGI-6754X
Quick Change - Grooving Tools - Face Grooving - Internal Tooth - Square, Quick Change - Grooving Tools
- Width : 0.1180"
- Projection: 0.2360"
- Minimum Groove Diameter: 0.510"
- Maximum Turn Depth: 1.000" (1)
- Length From Holder: 1.040"
- Tool #: QFGI-6754X
- Quantity Available: 15
- Price: $89.30
- Customer Rating:
Resources
Running Parameters
SIM Files / Tool Libraries

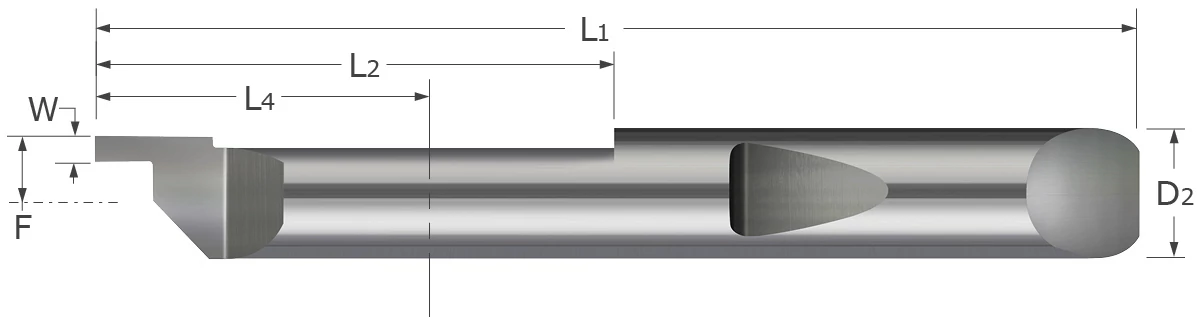

TOOL DIMENSIONS
- Width 0.1180"
- Projection 0.2360"
- Minimum Groove Diameter 0.510"
- Maximum Turn Depth 1.000" (1)
- Length From Holder 1.040"
- Centerline Offset 0.2400"
- Shank Diameter 0.5000" (1/2)
- Overall Length 2.50" (2-1/2)
- Coating AlTiN
- Profile Square
- Catalog Page 102
