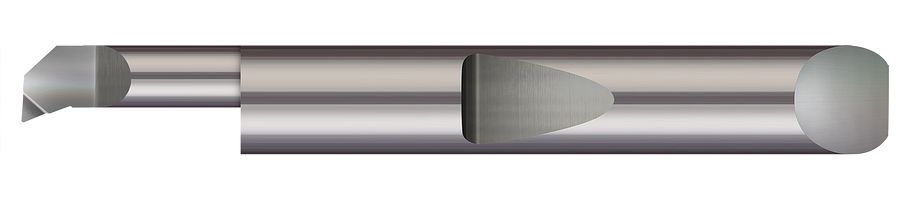

Tool # QBT-4601600
Quick Change - Boring Tools - Top Rake Chipbreaker, Quick Change - Boring Tools
- Head Width: 0.4600"
- Minimum Bore Diameter: 0.4800"
- Maximum Bore Depth: 1.600"
- Radius: 0.006"
- Projection: 0.0750"
- Tool #: QBT-4601600
- Quantity Available: 5
- Price: $98.60
- Customer Rating:
Resources
Running Parameters
SIM Files / Tool Libraries
TOOL DIMENSIONS
- Head Width 0.4600"
- Minimum Bore Diameter 0.4800"
- Maximum Bore Depth 1.600"
- Radius 0.006"
- Projection 0.0750"
- Length From Holder 2.040"
- Centerline Offset 0.2100"
- Shank Diameter 0.5000" (1/2)
- Overall Length 3.50" (3-1/2)
- Coating UN
- Profile Radius
- Catalog Page 75
