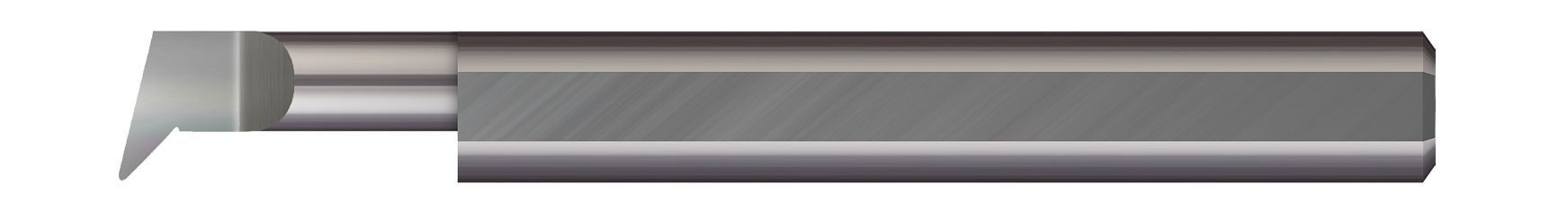

Tool # PA2-050150X
Standard - Profiling Tools - Angled Profiling, Standard - Profiling Tools
- Head Width: 0.0500"
- Minimum Bore Diameter: 0.0550" (1.4 mm)
- Maximum Bore Depth: 0.150"
- Radius: 0.002"
- Projection: 0.0150" (1/64)
- Tool #: PA2-050150X
- Quantity Available: 11
- Price: $33.55
- Customer Rating:
Resources
Running Parameters
SIM Files / Tool Libraries
TOOL DIMENSIONS
- Head Width 0.0500"
- Minimum Bore Diameter 0.0550" (1.4 mm)
- Maximum Bore Depth 0.150"
- Radius 0.002"
- Projection 0.0150" (1/64)
- Centerline Offset -0.0125"
- Shank Diameter 0.1250" (1/8)
- Overall Length 1.50" (1-1/2)
- Profile Radius
- Coating AlTiN
- Catalog Page 145
