Tool # MEF-030-200-3

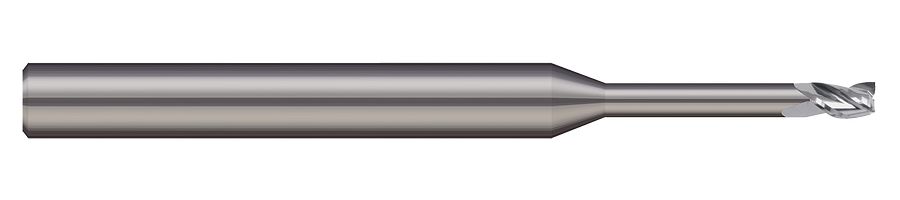

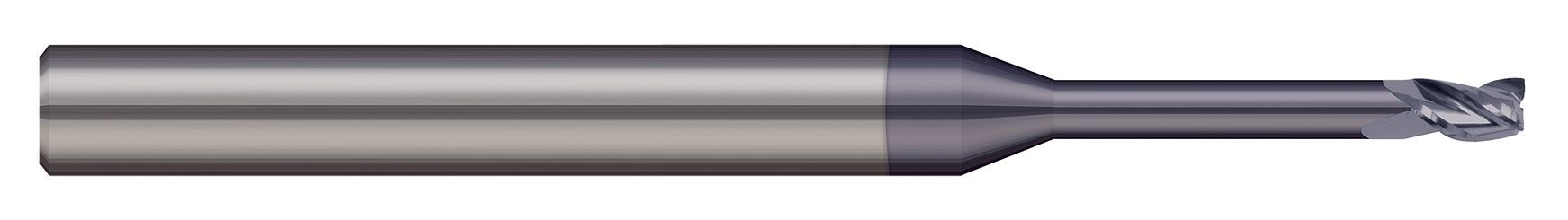

End Mills for Steels & High Temp Alloys - Square - 2 & 3 Flute - Long Reach, Stub Flute, End Mills for Steels & High Temp Alloys
- Cutter Diameter: 0.0300"
- Length of Cut: 0.045"
- Neck Diameter: 0.0280" (.7 mm)
- Overall Reach: 0.200"
- Reach Multiple: (6.7x)
- Tool #: MEF-030-200-3
- Quantity Available: 7
- Price: $33.70
- Customer Rating:
Resources
Running Parameters

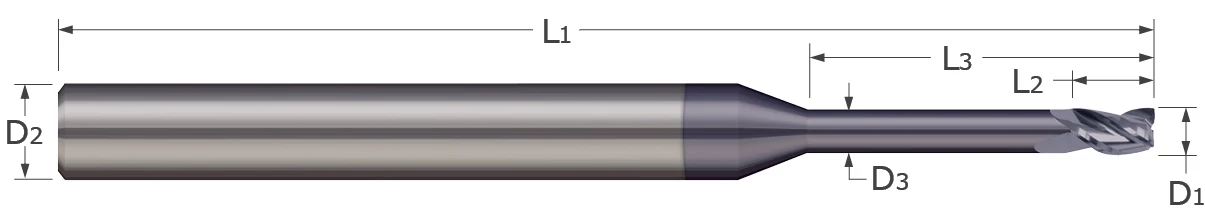

TOOL DIMENSIONS
- Cutter Diameter 0.0300"
- Length of Cut 0.045"
- Neck Diameter 0.0280" (.7 mm)
- Overall Reach 0.200"
- Reach Multiple (6.7x)
- Flutes 3
- Shank Diameter 0.1250" (1/8)
- Overall Length 1.50" (1-1/2)
- Coating UN
- Profile Square
- Catalog Page 255
