Tool # ITM-087446X
Standard - Threading Tools - Metric Shank - Single Point - Right Hand, Standard - Threading Tools
- Pitch: .75-3.5 mm
- Head Width: 7.40 mm
- Minimum Bore Diameter: 7.950 mm
- Maximum Bore Depth: 46.00 mm
- Point Offset: 1.090 mm
- Tool #: ITM-087446X
- Quantity Available: 16
- Price: $56.00
- Customer Rating:
Resources
Running Parameters
SIM Files / Tool Libraries

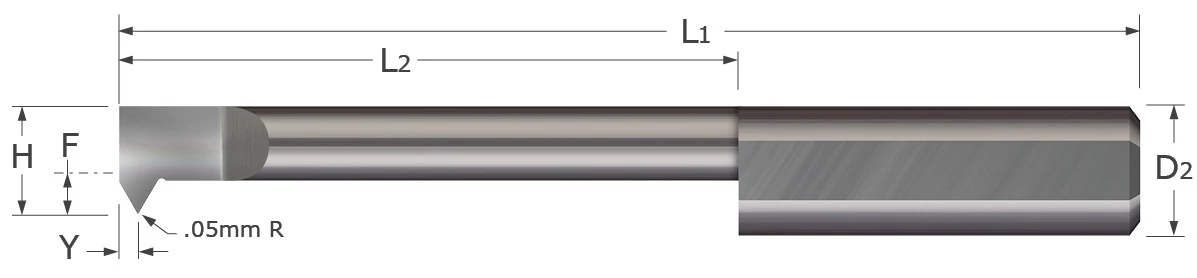

TOOL DIMENSIONS
- Pitch .75-3.5 mm
- Head Width 7.40 mm
- Minimum Bore Diameter 7.950 mm
- Maximum Bore Depth 46.00 mm
- Point Offset 1.090 mm
- Projection 1.910 mm
- Centerline Offset 3.400 mm
- Shank Diameter 8.000 mm
- Overall Length 63.0 mm
- Coating AlTiN
- Profile Radius
- Catalog Page 179
