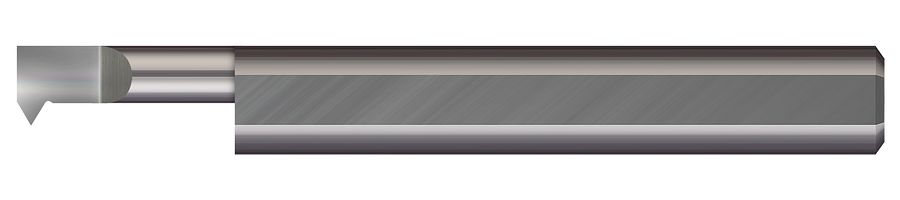

Tool # IT-230750
Standard - Threading Tools - UN Threads - Single Point - Right Hand, Standard - Threading Tools
- Threads Per Inch: 10-48
- Head Width: 0.2300"
- Minimum Bore Diameter: 0.2520"
- Maximum Bore Depth: 0.750" (3/4)
- Point Offset: 0.032"
- Tool #: IT-230750
- Quantity Available: 12
- Price: $49.40
- Customer Rating:
Resources
Running Parameters
SIM Files / Tool Libraries
TOOL DIMENSIONS
- Threads Per Inch 10-48
- Head Width 0.2300"
- Minimum Bore Diameter 0.2520"
- Maximum Bore Depth 0.750" (3/4)
- Point Offset 0.032"
- Projection 0.0550"
- Radius 0.0020"
- Centerline Offset 0.0738"
- Shank Diameter 0.3125" (5/16)
- Overall Length 2.50" (2-1/2)
- Coating UN
- Profile Radius
- Catalog Page 175
