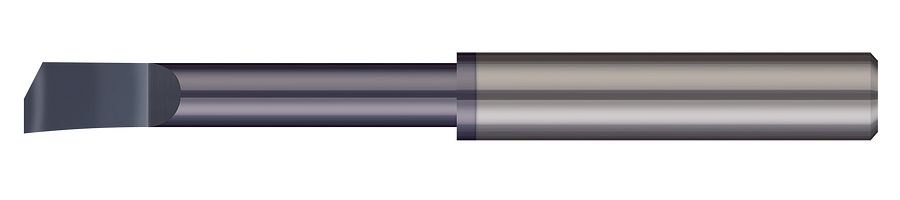

Tool # HBB-3602500X
Standard - Boring Tools - Helical Back Rake, Standard - Boring Tools
- Head Width: 0.3400"
- Rotational Min. Bore Dia.: 0.360"
- Maximum Bore Depth: 2.500" (2-1/2)
- Neck Diameter: 0.3200"
- Centerline Offset: 0.1800"
- Tool #: HBB-3602500X
- Quantity Available: 16
- Price: $87.50
- Customer Rating:
Resources
Running Parameters
SIM Files / Tool Libraries
TOOL DIMENSIONS
- Head Width 0.3400"
- Rotational Min. Bore Dia. 0.360"
- Maximum Bore Depth 2.500" (2-1/2)
- Neck Diameter 0.3200"
- Centerline Offset 0.1800"
- Shank Diameter 0.3750" (3/8)
- Overall Length 4.00" (4)
- Coating AlTiN
- Profile Chamfer
- Catalog Page 138
