Quick Change Holders - Star Swiss Machines - SR - 10J
Quick Change Holders
Quick change tool holder designed for use in model SR-10J Star swiss machines, Micro 100's QZST product line is suited for use with the .1875", .2500", and .3125" diameter shank quick change tools.
- Quick change tool holder designed for use in Star swiss machine model SR-10J
- Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
- Designed for use with the .1875", .2500", and .3125" diameter shank quick change tools
- Qualify with quick change centerline indicating tool (QI)
- Unique "3 point" locking and locating system ensures repeatability

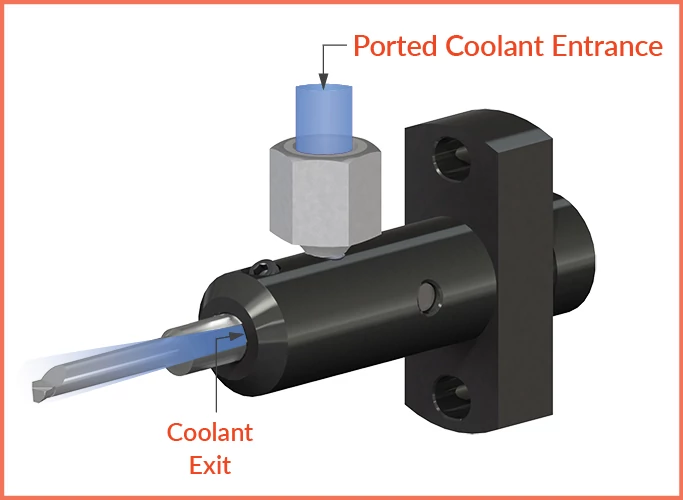

- Coolant delivered via external coolant port
- Heat treated and black oxide coated for durability and corrosion resistance
- Tool holder includes: hex wrench, QC-1 locating/locking screw, porting plug, straight coolant adapter
- Locating locking screw recommended torque 13 inch lbs
- Precision manufactured in the USA
Advanced Search
| Internal Diameter | Overall Reach | Shank Diameter | Overall Length | Ported Thread | Locating Locking Screw | Uncoated | Add to Cart | |
|---|---|---|---|---|---|---|---|---|
| D1 +.0005" / -.0000" | L3 | D2 | L1 | . | Tool # | Price | ||
