Standard - Grooving Tools - Face Grooving - Internal Tooth - Full Radius
Standard - Grooving Tools
Our Internal Tooth Full Radius Face Grooving Tool is engineered to generate a full radius groove around a boss in the face of a part, and feature a polished split face for improved edge retention.

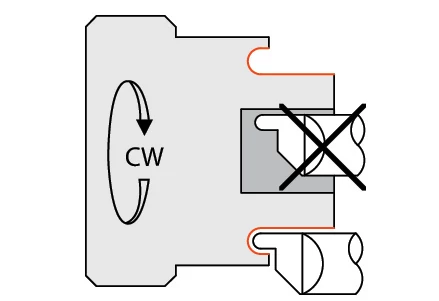

- Designed to generate full radius grooves around a boss in the face of a part for right hand grooving applications (M03) (See Graphic)
- Significantly reduces cycle times, as right hand design allows for multiple tools to be run simultaneously
- Relief ground along Maximum Turn Depth (L2) to avoid interference during long turning applications
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split face geometry provides optimal edge strength
- Full radius profile
- Lockdown flat automatically locates tool on center
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Advanced Search
| Width | Radius | Projection | Minimum Groove Diameter* | Maximum Turn Depth | Centerline Offset | Shank Diameter | Overall Length | Uncoated | AlTiN Coated | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W +.002"/-.000" | R +/-.0010" | P +.015"/-.000" | L2 | F | D2 (h6) | L1 | Tool # | Price | Tool # | Price | ||
*Minimum Groove Diameter provides proper clearance on outside of tooth during initial plunge.
